Compact, accurate and reliable

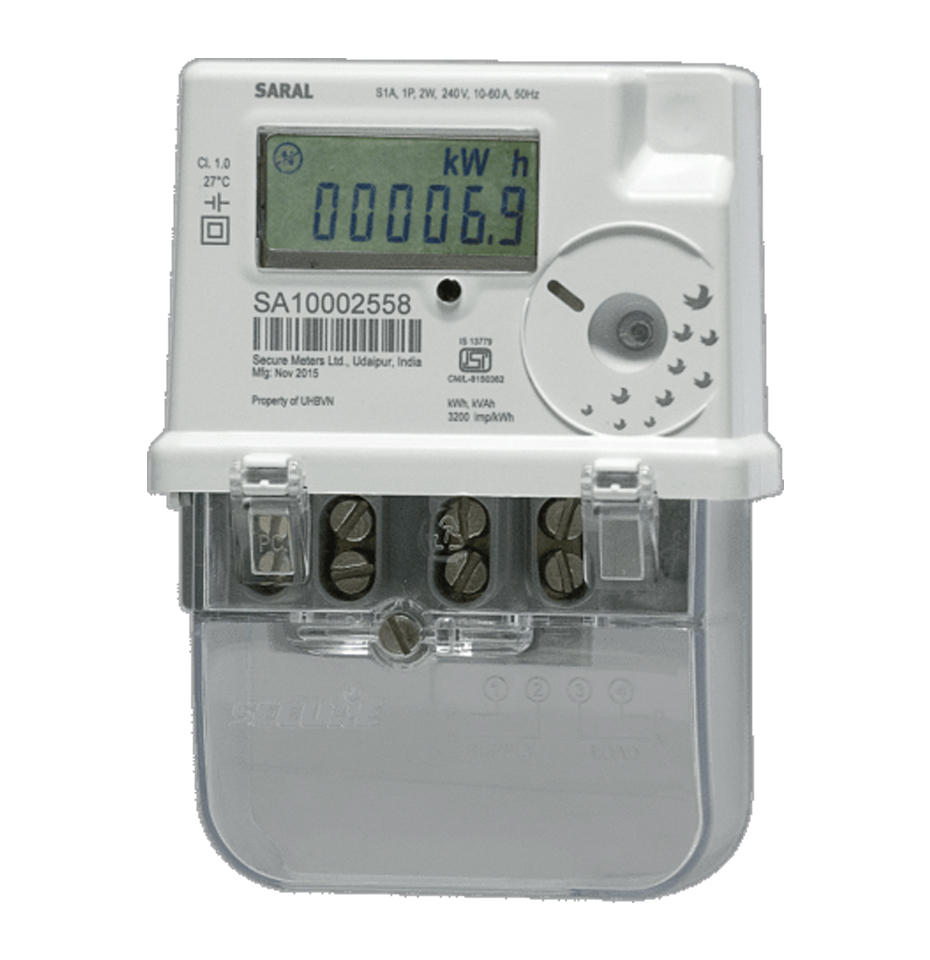

A compact single-phase, direct-connected intelligent credit meter for domestic and small commercial metering applications, including net metering. Its enhanced revenue protection features coupled with an inter-operable communication protocol makes it an ideal choice for distribution companies. The meter offers an accurate and reliable metering solution to measure electrical energy in a single phase two-wire network and ensures revenue assurance.
Benefits
- Advanced anti-tamper capabilities; prevention, detection and deterrence
- Quality of supply information
- Peak and off-peak tariff management
- Stringent ingress protection - outdoor
- Low cost of ownership
Features
- Meter reading in the absence of mains
- Integrated base and cover
- Current and temperature profile to help analyse loose connections, attempts to burn
- Walk by meter reading over BLE (optional)
- Smallest footprint in its class
- Compact and light weight
- User-friendly display
- Intuitive display actuator without an opening
| Electrical | |
| Connection type | Direct connected |
| Wiring configuration /td> | Single phase, two wire< |
| Voltage range | 230/240 V (L-N) |
| Current range | 5-30A, 10-60A, 10-100A |
| Accuracy Class | 1.0 |
| Mains frequency | 50 / 60 Hz |
| Burden | |
| Voltage circuit | 0.5W and 1 VA |
| Current circuit | 0.1 VA |
| Compliance | |
| Standards | IS 13779, IEC 62052-11, IEC 62053-21, IS 15959 |
| Meter constant | 6400 imp/kWh, 3200 imp/kWh, 1280 imp/kWh |
| Mechanical | |

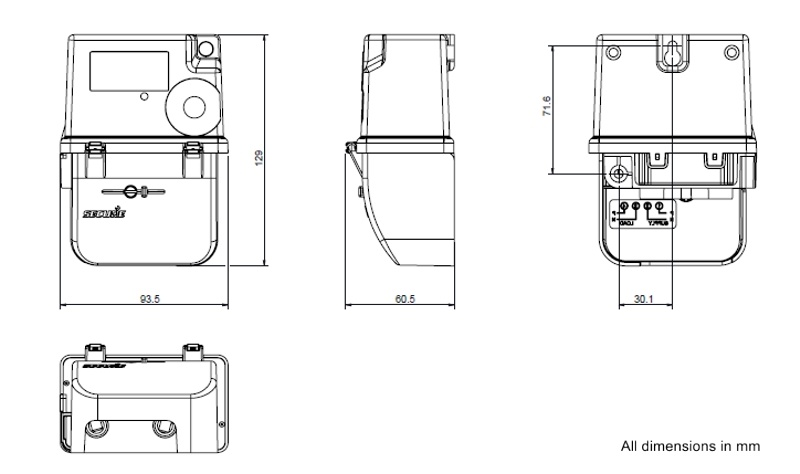

| Dimensions (W x H x D) | 95 x 130 x 60mm (approx.) |
| Weight | 0.3 kg (approx.) |
| Enclosure | Engineering plastic |
| Environmental | |
| Ingress protection | IP 54 |
| Surge withstand | 10 kV |
| Humidity | 95% non-condensing |
| Temperature | -20 °C to +60 °C (operating), -25 °C to +70 °C (storage) |
