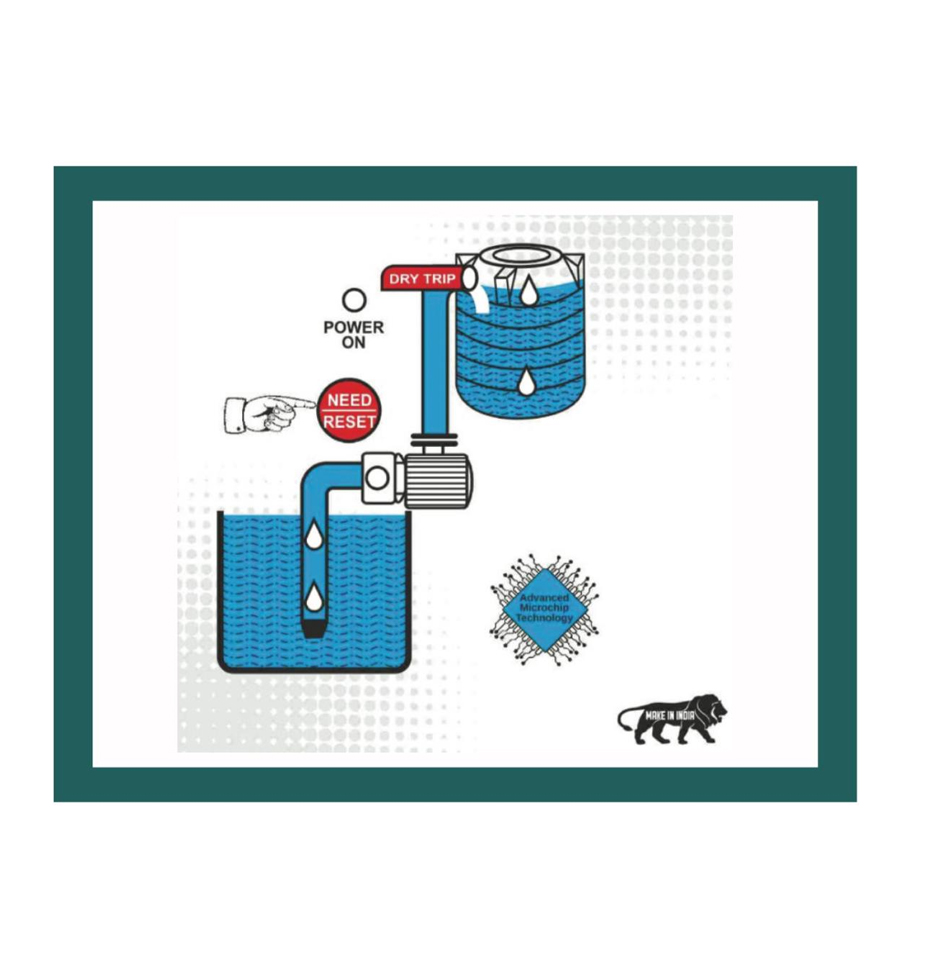

Automatic Motor Control System is used to automatically fill the overhead tank when it's empty and monitor the Real-time water level. Three different level sensors will help to check the water level and On/Off the motor respectively. As per the sensor, the setting motor gets On when the water is below 10% of the Tank and gets off automatically when the level reaches 95% at the overhead Tank. AC sensing Feature enhances the sensor life.
System Supply Voltage | 160V - 250V AC 50Hz |
Sensing Voltage | 6V - 12V AC |
Output Capacity | 30Amps at 230V AC |
Dry run trip delay | 90 Seconds |
Power on Delay | 5 Seconds |
Output Indicator | LED |
Encloser | Metal |
